Case/Gig Bag
Deluxe Hardshell
Included Accessories
Deluxe Hardshell Case, Strap and Certificate of Authenticity.
Artisan Korina Stratocaster®
Artisan Korina Stratocaster®
Artisan Korina Stratocaster®
Details
Summary
Overview

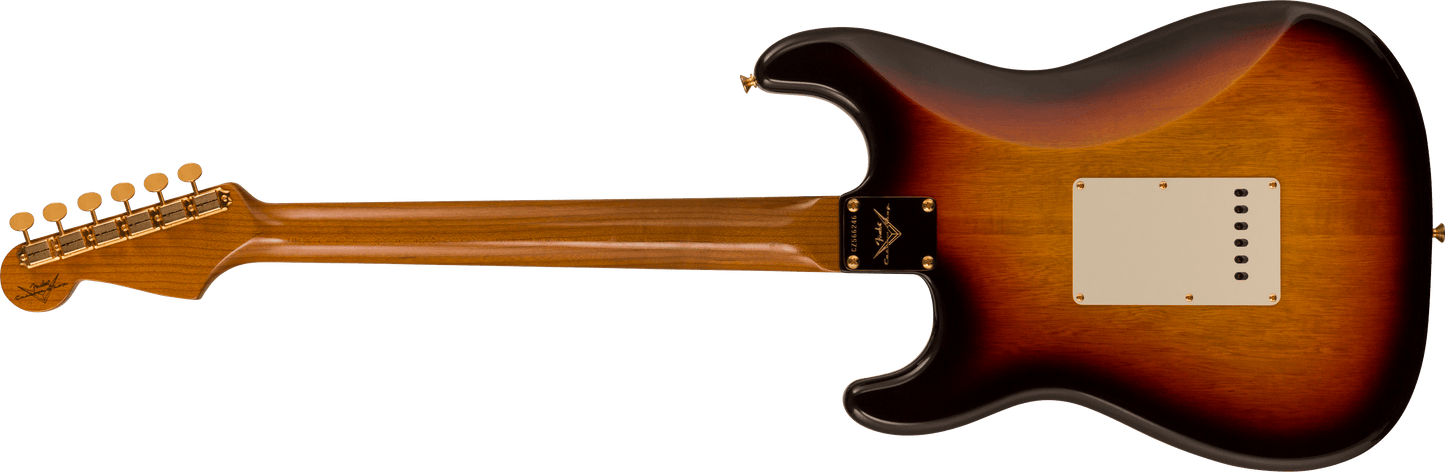

New for 2023, the Fender Custom Shop introduces the Artisan Korina Strat, which features a beautifully crafted thinline body fashioned from select korina. This light and fine-grained west African mahogany has exquisite looks and tonal qualities similar to western mahogany varieties, delivering warm, bass-friendly tone and sweetly responsive midrange. These qualities in turn complement the open, resonant tone of the two-piece semi-hollow body, which features a single f-hole and a sumptuous NOS lacquer finish in Chocolate Three-Color Sunburst with gold hardware.
Its quartersawn maple neck has a comfortable '60-style Oval "C" profile and is roasted for even more beauty and stability, topped by a compound-radius (9.5"-12") round-lam rosewood fingerboard with 21 narrow tall (6105) frets and a bone nut. All three Custom Shop hand-wound Fat '64 Strat pickups (reverse-wound/reverse-polarity middle pickup for hum cancellation in switch positions 2 and 4) are slightly overwound versions of our popular '64 Strat pickups, calibrated for balanced output from bridge to neck and delivering classic mid-'60s Strat tone with extra punch.
Other premium features include Vintage Modified #2 wiring with Tone-Saver bleed circuit (eliminates tonal loss when the volume control is turned down), five-way pickup switch, 11-hole single-ply parchment pickguard, Custom Shop vintage synchronized tremolo bridge, vintage-style tuners, wing string tree with tall metal spacer, deluxe hardshell case, strap and certificate of authenticity.
Accessories
Body
Body
Korina
Body Finish
Nitrocellulose Lacquer with WLS Undercoat
Body Material
Korina
Body Shape
Stratocaster®
Electronics
Bridge Pickup
Custom Shop Hand-Wound Fat ’64 Single-Coil Strat®
Controls
Master Volume with Tone-Saver Treble-Bleed Circuit, Tone 1. (Neck/Middle Pickups), Tone 2. (Bridge Pickup)
Middle Pickup
Custom Shop Hand-Wound RWRP Fat ’64 Single Coil Strat®
Neck Pickup
Custom Shop Hand-Wound Fat ’64 Single Coil Strat®
Pickup Configuration
SSS
Potentiometers
250K 10% Taper Split
Switching
5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup
General
Color
Chocolate 3-Color Sunburst
Orientation
Right-Hand
Product Name
Artisan Korina Stratocaster®, Rosewood Fingerboard, Chocolate 3-Color Sunburst
Series
Artisan
Hardware
Bridge
Custom Shop Vintage Synchronized Tremolo
Control Knobs
Vintage White Plastic
Hardware Finish
Gold
Neck Plate
4-Bolt with Custom Shop "V" Logo
Pickguard
1-Ply Parchment
Pickup Covers
Vintage White
String Trees
Single-Wing with Tall Metal Spacer
Strings
Fender® USA 250R Nickel Plated Steel (.010-.046 Gauges), PN 0730250406
Switch Tip
Vintage White
Tremolo Arm
Vintage Upgraded '60s
Tuning Machines
Vintage-Style with Fender® Logo
Measurements
Fret Size
Narrow Tall (6105)
Headstock Thickness
0.575"
Scale Length
25.5" (648 mm)
Neck
Fingerboard Material
Round-Laminated Rosewood
Fingerboard Radius
9.5" to 12" Compound Radius
Headstock
Stratocaster® Small
Neck Butt Width
2.200"
Neck Finish
Nitrocellulose Lacquer
Neck Material
Roasted Quartersawn Maple
Neck Shape
'60s Oval "C"
Neck Thickness
.790"
Neck Thickness 12th Fret
.930"
Number of Frets
21
Nut Material
Bone
Nut Width
1.650" (42 mm)
Position Inlays
Mother of Pearl Dot - 0.25"
Side Dots
Mother of Pearl
String Nut
Bone
Truss Rod
Early '60s
