Color
Natural
Orientation
Right-Hand
Product Name

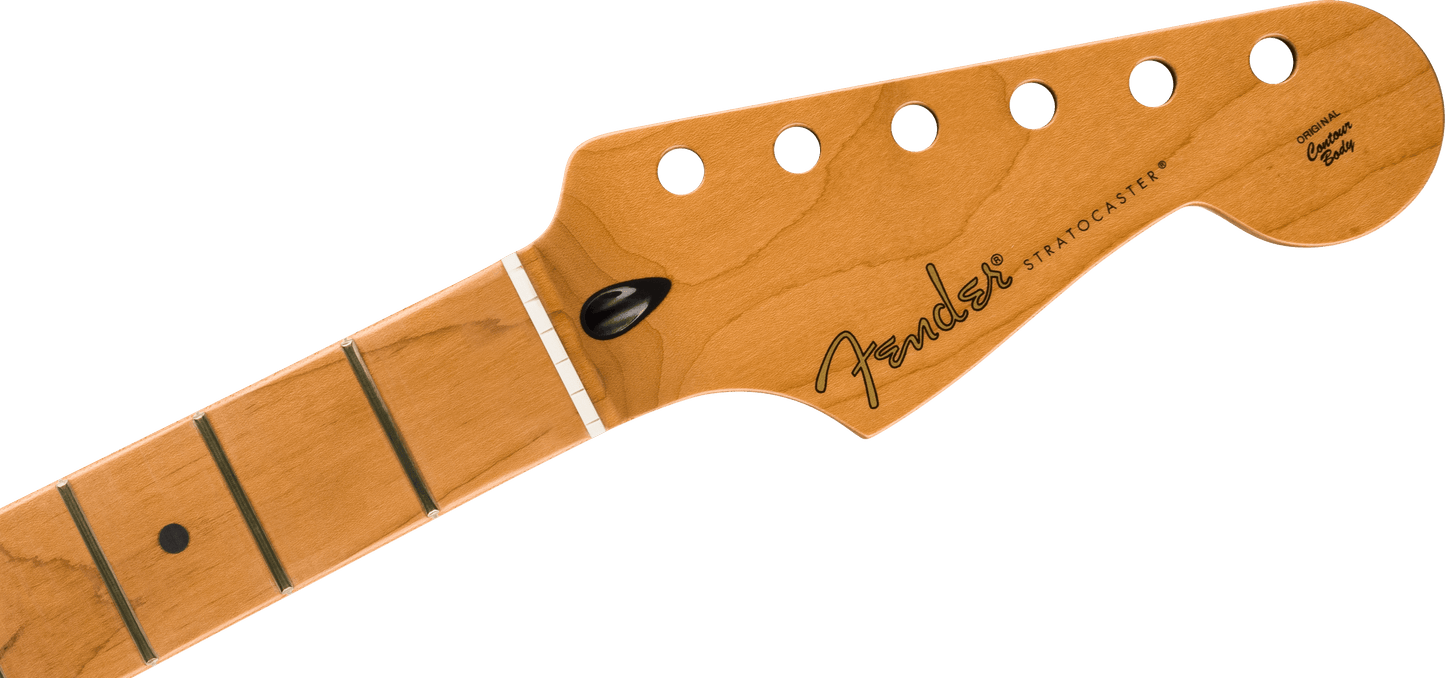

Satin Roasted Maple Stratocaster® Neck, 22 Jumbo Frets, 12", Maple, Flat Oval Shape
Series
Necks
Satin Roasted Maple Stratocaster Neck, 22 Jumbo Frets, 12", Flat Oval Shape
Regular price
385,00 €
Regular price
385,00 €
Sale price
Unit price
per
inc. VAT*
Satin Roasted Maple Stratocaster Neck, 22 Jumbo Frets, 12", Flat Oval Shape
Satin Roasted Maple Stratocaster Neck, 22 Jumbo Frets, 12", Flat Oval Shape
Model #:
0990492920
Regular price
385,00 €
Regular price
385,00 €
Sale price
Unit price
per
inc. VAT*
- Roasted maple Stratocaster neck
- "Flat Oval"-shaped profile; 12"-radius maple or rosewood fingerboard and rolled edges
- 22 jumbo frets; synthetic bone nut
- Satin urethane finish with gloss headstock face
- Modern-style truss rod adjustment
Couldn't load pickup availability
Details
Summary
Overview
There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.
This genuine Fender Stratocaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a comfortable "Flat Oval"-shaped profile and 12"-radius maple or rosewood fingerboard with 22 jumbo frets, this neck was designed for pure speed and comfort. Upgraded features include a satin urethane finish and rolled fingerboard edges for supreme comfort and a broken in feel.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.
Overview
Features
- Roasted maple Stratocaster neck
- "Flat Oval"-shaped profile; 12"-radius maple or rosewood fingerboard and rolled edges
- 22 jumbo frets; synthetic bone nut
- Satin urethane finish with gloss headstock face
- Modern-style truss rod adjustment
Specs
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Jumbo
Fret Wire Dimensions
0.110" (H) x 0.055" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Roasted Maple
Fingerboard Radius
12" (305 mm)
Neck Binding
None
Neck Finish
Satin Urethane with Gloss Urethane Headstock Face
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Flat Oval
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.6875" (42.86 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
Specs
General
Color
Natural
Orientation
Right-Hand
Product Name
Satin Roasted Maple Stratocaster® Neck, 22 Jumbo Frets, 12", Rosewood, Flat Oval Shape
Series
Necks
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Jumbo
Fret Wire Dimensions
0.110" (H) x 0.055" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Commodity Code
9209.94.8000
Neck
Fingerboard Material
Rosewood
Fingerboard Radius
12" (305 mm)
Neck Binding
None
Neck Finish
Satin Urethane with Gloss Urethane Headstock Face
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Flat Oval
Neck Thickness
1st Fret - .820" (20.82 mm), 12th Fret - .870" (22.09 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.6875" (42.86 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
